Saola: A Grasshopper Plugin Built on ETABSharp

In the last post, I introduced ETABSharp — a C# wrapper that makes the ETABS COM API typed, composable, and actually enjoyable to work with.

That was the foundation. Saola is what you can build on top of it.

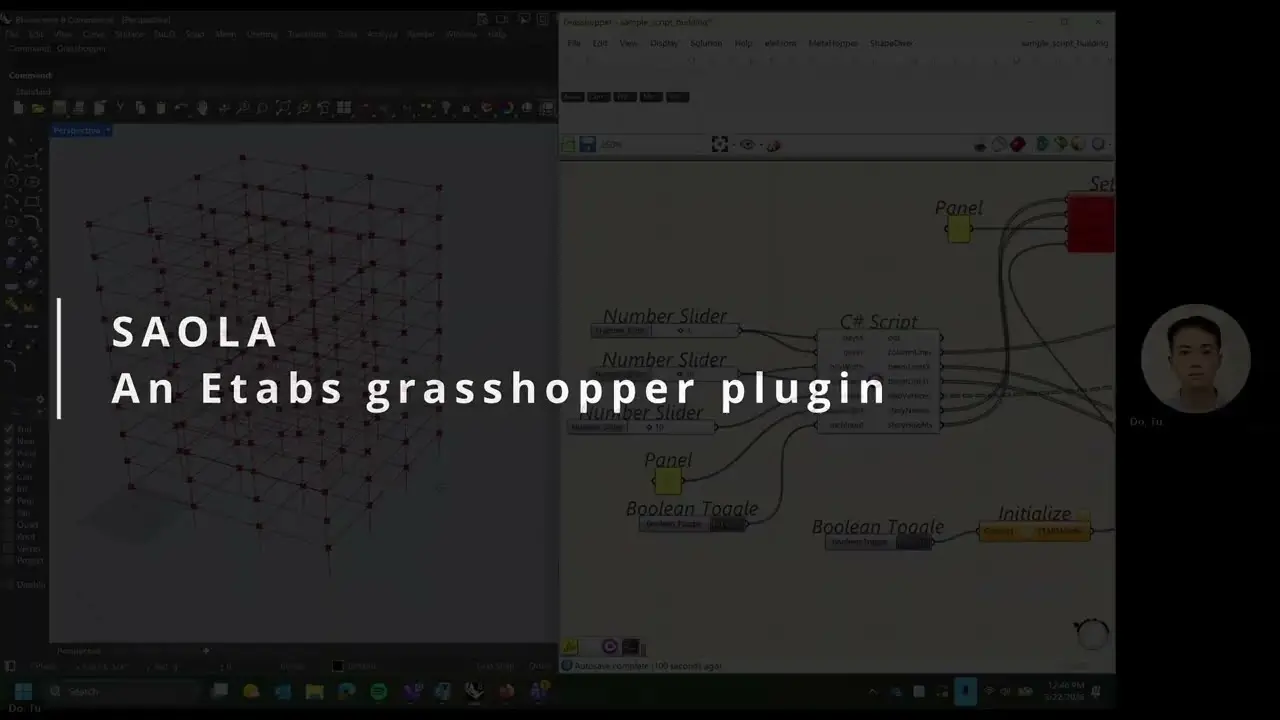

Saola is a Grasshopper plugin that lets structural engineers drive ETABS directly from the GH canvas — draw geometry in Rhino, wire it through Saola components, and watch the structural model appear in ETABS in real time.

Why Grasshopper?

Grasshopper is already where parametric structural geometry lives. Architects and engineers use it to explore floor plate shapes, structural grids, facade systems. But getting that geometry into ETABS has always meant an export step, a manual import, and a lot of reformatting.

Saola closes that gap. The geometry stays in Rhino. ETABS stays open. A single button push syncs them.

Architecture: three layers

Saola is deliberately split into three layers, each with a clear responsibility.

1. Saola.Core — the logic layer

All structural logic lives here, and it has zero Grasshopper dependency.

// Pure C# — no GH types, no canvas, no DA object
public static BatchResult AddFramesByLines(
    ETABSModel model,
    IList<Line> lines,
    string section,
    IList<string>? userNames = null)

FrameService, AreaService, StoryService, and EtabsTableQueryService are all static classes that take an ETABSModel and return a typed result. No Grasshopper types anywhere.

This means the same logic can run in:

• A Grasshopper component
• The EtabExtension Tauri desktop app
• A CLI batch script
• A unit test

No copy-paste, no duplication. One service, every context.

2. GH_ETABSModel — the connection wrapper

Grasshopper needs a typed wrapper to pass the ETABS connection through wires on the canvas. GH_ETABSModel is that wrapper — it extends GH_Goo<ETABSApplication> and gives the wire a name, a type identity, and a human-readable label.

public override string TypeName => "ETABSModel";

public override string ToString() =>
    Value is null
        ? "No ETABS connection"
        : $"ETABS {Value.FullVersion}";

On the canvas, engineers see ETABSModel wires in a distinct color — visually separate from geometry or text wires. Type-checking happens at wire time, not at solve time.

3. GH components — the thin shell

Each component does exactly four things:

1. Read inputs via DA
2. Validate and return early with a GH_RuntimeMessage
3. Call the service, check the typed result
4. Write outputs via DA

Here’s SetStoriesComponent — the simplest example since it uses ServiceResult:

protected override void SolveInstance(IGH_DataAccess DA)
{
    // 1. read
    if (!DA.GetDataList(0, storyNames) || storyNames.Count == 0) { ... return; }
    if (!DA.GetDataList(1, storyHeights) || storyHeights.Count == 0) { ... return; }
    DA.GetData(2, ref baseElevation);
    if (!DA.GetData(3, ref modelGoo) || modelGoo?.Value is null) { ... return; }

    // 2. call service — no try/catch needed
    var result = StoryService.SetStories(
        modelGoo.Value.Model, storyNames, storyHeights, baseElevation);

    // 3. check result
    if (!result.IsSuccess)
    {
        AddRuntimeMessage(GH_RuntimeMessageLevel.Error, result.Message);
        return;
    }

    // 4. write outputs
    AddRuntimeMessage(GH_RuntimeMessageLevel.Remark, result.Message);
    DA.SetData(0, modelGoo);
}

DrawFrames follows the same shape but checks BatchResult instead, surfacing per-item warnings without aborting the whole batch:

    var result = FrameService.AddFramesByLines(
        modelGoo.Value.Model, lines, section,
        userNames.Count > 0 ? userNames : null);

    foreach (var (index, message) in result.Errors)
        AddRuntimeMessage(GH_RuntimeMessageLevel.Warning, message);

    DA.SetDataList(0, result.Names);
    DA.SetData(1, modelGoo);

The component doesn’t know what a frame or a story is. It just moves data.

The passthrough pattern

Every Saola component takes ETABSModel as its last input and passes it through as its last output — unchanged.

This lets you chain components like sentences:

Initialize → SetStories → DrawFrames → DrawAreas → ExtractTable

The connection flows left to right. Engineers read the canvas the same way they’d read a workflow diagram.

This pattern comes from DiaStrut, an earlier plugin that established the convention. Saola inherits it.

Typed results, no try/catch in components

Every service returns a typed result. No component ever wraps a service call in try/catch — error handling belongs in the service, not the shell.

There are three result types, each matched to the operation:

BatchResult — for element creation (FrameService, AreaService). Collects per-item errors so a batch of fifty lines doesn’t abort on the first bad input. Successful items are created; failed items surface as GH warnings pinned to the component with their index.

public sealed class BatchResult
{
    public List<string> Names { get; } = new();
    public Dictionary<int, string> Errors { get; } = new();
    public bool HasErrors => Errors.Count > 0;
    public bool AllFailed => Names.All(string.IsNullOrEmpty);
}

ServiceResult — for single operations (StoryService). Success or fail with a message. The component checks IsSuccess and emits either a Remark or an Error — no exception handling needed.

public sealed class ServiceResult
{
    public bool IsSuccess { get; init; }
    public string Message { get; init; } = string.Empty;

    public static ServiceResult Ok(string message = "") => ...;
    public static ServiceResult Fail(string message) => ...;
}

TableQueryResult — for table queries (EtabsTableQueryService). Returns structured rows and field keys, or a descriptive error if the fetch failed (model not analysed, bad table key, load selection empty).

The component layer becomes a clean read → call → check → write pattern with no exception logic anywhere:

The session singleton

Grasshopper’s SolveInstance fires on every recompute — which can mean dozens of times per session. Without care, each recompute would open a new COM connection to ETABS, which is slow and destabilizing.

ETABSSession holds one live connection and reuses it:

public static ETABSApplication? GetOrConnect()
{
    if (_instance == null || !IsAlive(_instance))
        _instance = ETABSWrapper.Connect(NullLogger<ETABSApplication>.Instance);

    return _instance;
}

IsAlive probes the connection by calling app.FullVersion. If ETABS was closed and reopened, the next recompute reconnects automatically. Engineers don’t have to think about connection state.

Querying results back into Grasshopper

Writing geometry into ETABS is half the workflow. The other half is getting analysis results back out — without leaving the canvas.

ExtractTable does this. It wraps EtabsTableQueryService, a self-contained query layer in Saola.Core (no CLI dependency), and surfaces any ETABS database table in three outputs:

[0] Rows     DataTree<string>  — one branch per row, items = field values in header order
[1] Headers  List<string>      — column names, parallel to items within each Rows branch
[2] JSON     string            — full table as JSON, ready to write to file or Excel

Load selection follows the same null / ["*"] / specific-names contract used across the rest of the codebase:

Disconnect LC / LX entirely  →  null  →  geometry tables (Story Definitions, Pier Section Properties)
Connect but leave blank       →  ["*"] →  select ALL cases or combos
Type "DEAD,LIVE,EQX"          →  exact selection

The query service always resets ETABS display selection back to all-selected after each fetch, so successive GH solves start from a known clean state.

Reading individual values — no dedicated component needed

Once you have Rows and Headers, picking a specific column value is a one-liner in a standard GH C# Script component:

// inputs: rows (DataTree<string>), headers (List<string>), column (string), row (int)
private void RunScript(DataTree<string> rows, List<string> headers,
                       string column, int row, ref object Value)
{
    var colIndex = headers.IndexOf(column);
    if (colIndex < 0) { Value = $"Column '{column}' not found"; return; }

    var path = new GH_Path(row);
    if (!rows.PathExists(path)) { Value = $"Row {row} not found"; return; }

    Value = rows.Branch(path)[colIndex];
}

This deliberately lives in a C# Script rather than a dedicated Saola component. A value picker doesn’t need typed wires, batch error handling, or session management — the things that justify a real component. Keeping it as a script also signals to engineers that ExtractTable’s outputs are composable with standard GH tooling, not locked into Saola-specific components.

The full canvas chain ends up looking like this:

Initialize → SetStories → DrawFrames → DrawAreas → ExtractTable ("Base Reactions")
                                                          ↓              ↓
                                                    C# Script        JSON Panel
                                                    (FX, FY per
                                                     load case)

Current components

Component	Category	What it does
Initialize	Connection	Connects to running ETABS, outputs ETABSModel
SetStories	Model	Defines story levels — must run before geometry
DrawFrames	Frames	Creates frame elements from lines + section name
DrawAreas	Areas	Creates area elements from closed vertex trees
ExtractTable	Results	Queries any ETABS database table → Rows, Headers, JSON

More components are in progress — loads, supports, section assignment, and dedicated result extractors for drift, pier forces, and modal mass ratios.

Get it

Saola is built on top of ETABSharp. You’ll need both:

dotnet add package EtabSharp --version 0.3.3-beta

• ETABSharp GitHub: github.com/tadoEng/EtabSharp
• Saola source: github.com/tadoEng/Saola

If you’re building Grasshopper tooling for structural engineering, or want to try Saola on a real project, reach out — I’m happy to talk through how the architecture fits different workflows.
